Cell Cutting Depth Measuring Device
Product Description


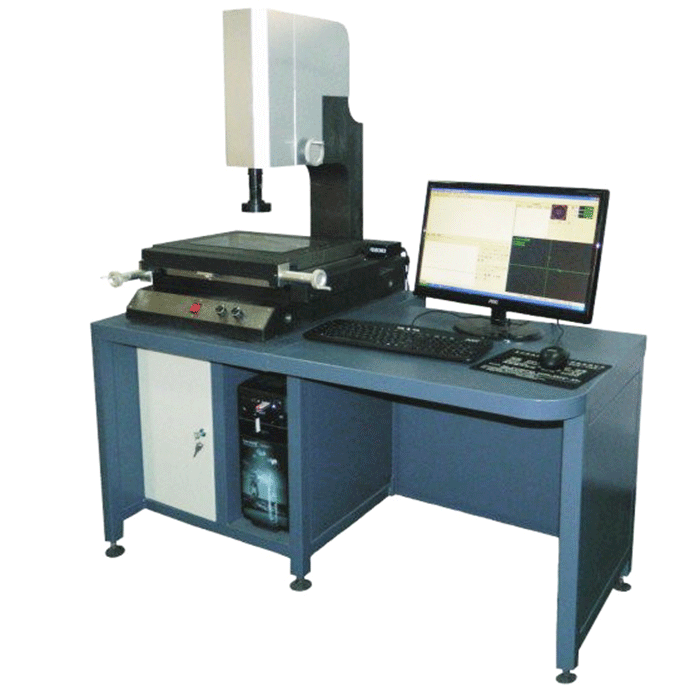

Cell Cutting Depth Measuring Device




电池片切割深度检测仪(图1)



Device Type

2010S

2515S

3020S

4030S

Workbench   Size(mm)

360*260

410*310

460*360

560*460

Platform   Size (mm)

230*130

280*180

330*230

429*329

Range   (mm)

200*100

250*150

300*200

400*300

Weight   (kg)

125

150

200

250

Device   Size: L x W x H

590*600*800

710*560*790

710*560*790

860*660*790

Measuring   System

CameraSONY Color 1/3"CCD

Bifocal objective magnification:  0.7-4.5X         Distance95mm

Total   video multiplier: 30-230X                        The   object space view: 7-1.1mm

 Z axis focusing range: 200mm    X.Y coordinates   value tolerance≤   (2+L/200μm
