PV Module Reverse Current Overload Test Device
Product Description

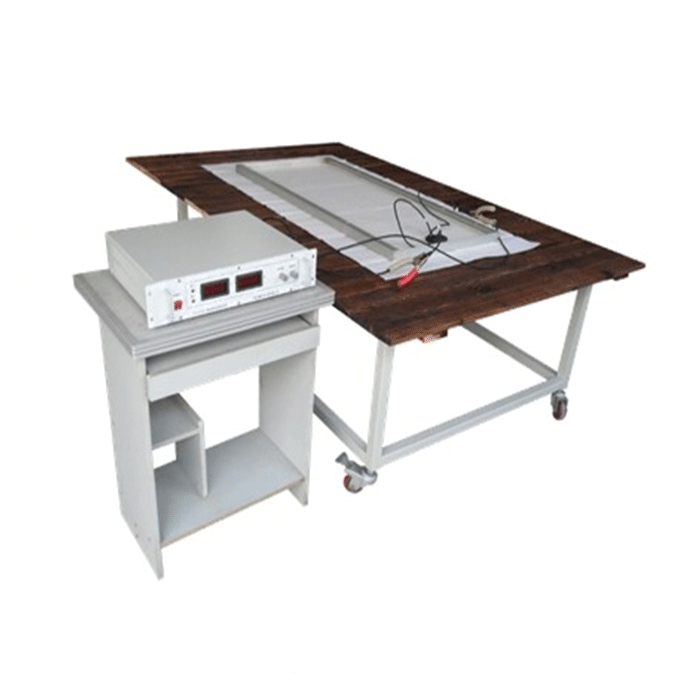

PV Module Reverse Current Overload Test Device


光伏组件反向电流过载测试仪(图1)

DC Power Supply:

 DC 30A

Cheesecloth:

 26,28 m2/kg,  32×28

Pine Board Thickness:

 19.1 mm

5" cells (125×125):

Max protection current: 10A

Test current: 13.50A

Tissue Paper:

 12~30 g/m2

6" cells (156×156):

Max protection current: 15A

Test current: 20.25A



Thin-film Module:

Max protection current: 5A

Test current: 6.75A
